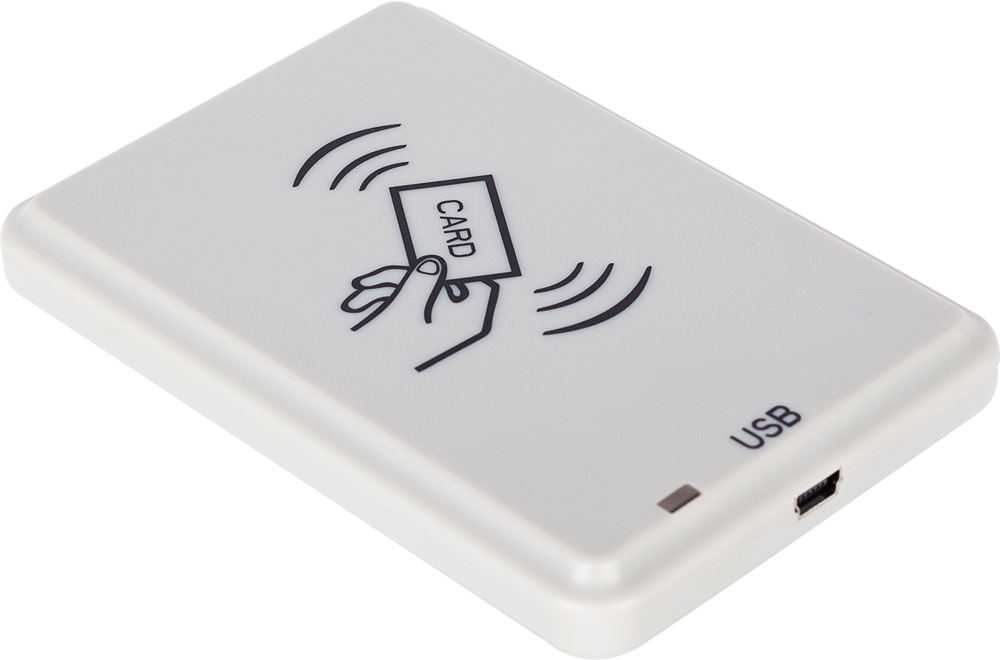

HDR863 HF Desktop Reader

Item No.: WS-HDR863
Operating Frequency: 13.56 MHz
Compatible Protocols: ISO 14443A/B, ISO 15693, NFC
Dimension: 105 × 70 × 10mm
Weight: 53g
Description Parameter



  • NFC Forum Type 1~5 tag RFID reader and writer
  • NXP MIFARE tag RFID reader and writer
  • NXP ICODE tag RFID reader and writer
  • NXP ILT tag RFID reader and writer
  • ST ISO14443B RFID reader and writer
  • USB plug and play design, no need to install drive program
  • Support keyboard emulation
  • Environmental ABS housing material






Operating Frequency 13.56 MHz
Compatible Protocols ISO 14443A/B, ISO 15693, ISO 18000-3M3
Compatible Tags NFC Forum Type 1: Innovision Topaz512
NFC Forum Type 2: Mifare Ultralight, Mifare Ultralight C, Mifare Ultralight EV1, NTAG21x.
NFC Forum Type 3: Sony Felica [only support Polling]
NFC Forum Type 4: Mifare DESFire EV1
NFC Forum Type 5: ICODE SLI ,ICODE SLIX ,ICODE SLIX2 ,Tag-it HF-I plus
Mifare Classic Type: Mifare S50, Mifare S70 ,Mifare Mini
ISO18000-3M3 Type: ICODE ILT
ST ISO14443B Type: SRIX4K, SRI512, ST25TB512-AC
Communication Interface USB
Reading Range ISO 15693 16cm
ISO 14443A 10cm
ISO 18000-3M3 6cm
Anti-collision Algorithm Support
Keyboard Emulation Support
Working Voltage DC 5V
Max Power Consumption 0.65W
Dimension 105 × 70 × 10mm
Weight 53g
